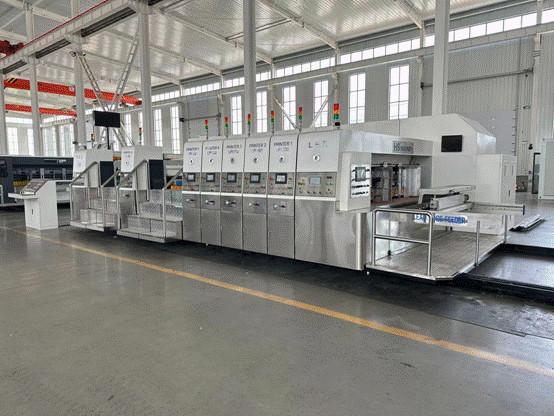

Full Automatic Ink Printing Die Cutting Slotting Machine
Packing Corrugated Box Printing Machine with Slotter and Die Cutter
Model: 1600x2800
| Max.Sheet size | 1600x2800mm |
| Max. speed: | 200pcs/min. |
| Economical speed: | 150pcs/min. |
| Max.working size: | 1600x 2800mm |
| Min.sheet size: | 500mmX600mm |
| Max.printing area: | 1600 x 28600mm |
| Wall thickness: | HT250, 80mm |
| Cliché thickness: | 7mm |
| Slot width x Slot depth: | 7mmX300mm |
| Max. paper thickness | 10mm |
| Slotting accuracy | ±1.5mm |
| Printing registration(medium speed): | ±0.5mm |
| Mesh mode: | 180LPI |
| Dimension of the whole machine | 13000(L)x6000(W)x3300(H)mm |
| Total power(KW) | 30KW |
| Total weight(Ton) | 40TONS |
Characteristics:
1. Integrated CNC control system, trouble-shooting, production management,remote maintenance.
2. Quick printing plate mounting, motorized phase zero.
3. Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
4. High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
5. Creasing-slotting unit, prevent creasing line from bursting,better folding.
6. Counter ejector with down stacking.
7. Choose international brand electric components and transfer bearings,pass CE certification.
1.Electric control machine clutch attached to an alarm, warning road between the continuous ringing, to ensure the safety of
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.
3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
4.Carton use automatic zero device, two test print can be adjusted to the correct position, reduce the waste of cardboard.
1.High quality cerimic anilox printing roller with doctor blade.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.

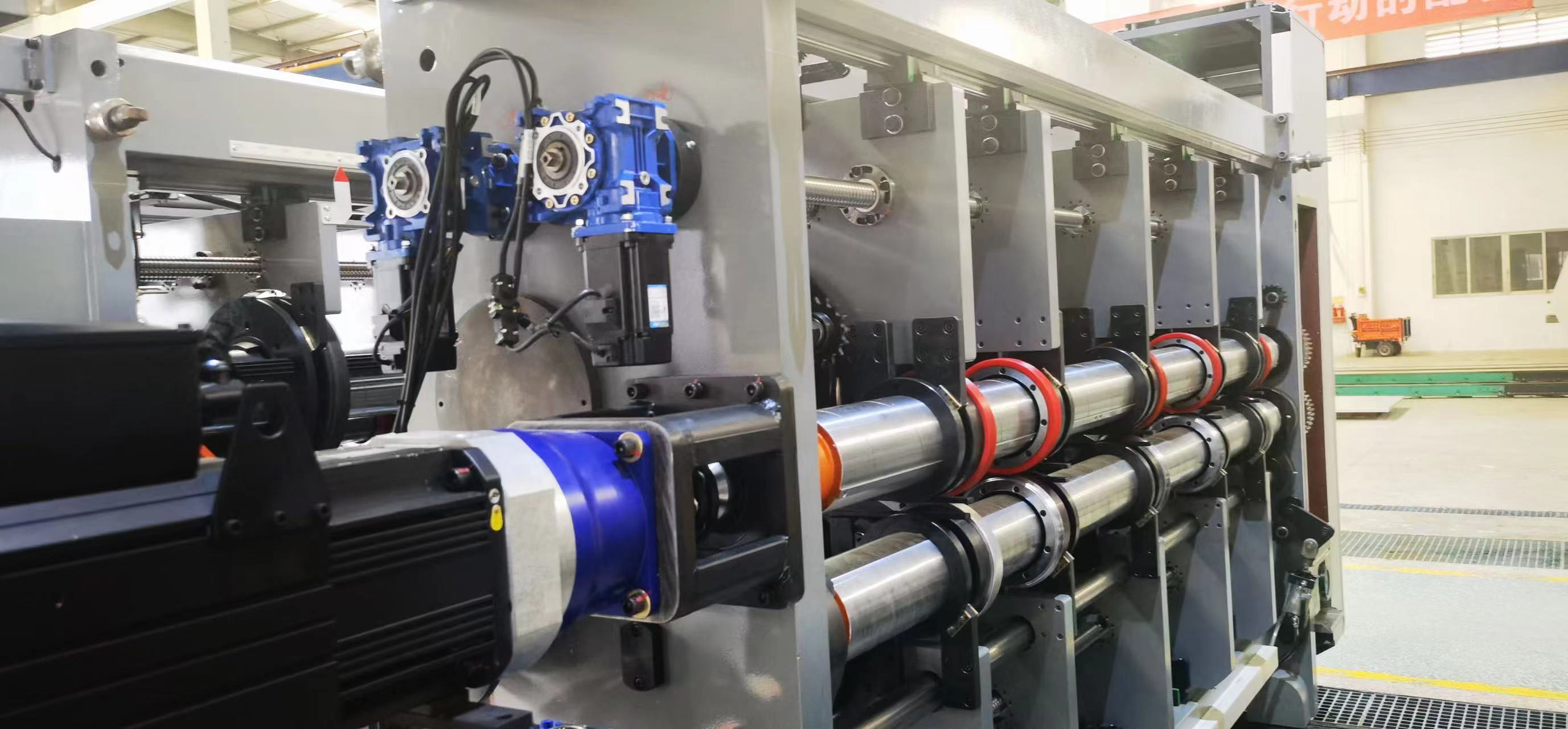

Slotting Unit
1.The above slotting shaft:175mm, after surface grinding treated with hard chromium. Above slotting knife holder diameter405mm, has the paper grabbing function.
2. Lower slotting shaftdiameter155mm, surface grinding and hard chromium plating. Lower slotting knife holder diameter260mm, has the paper grabbing function.
3. Slotting knife width 7mm, adjust scorers synchronously. Corner cutter can cut the edge width 50mm, mechanical adjustment of the knife holder transverse position.
4. Slotting knife holder gap adjusted by mechanism, range is 2~11mm.360°electric phase adjustment in positive and negative, digital display control.
5. Adjust the carton height by manual.
